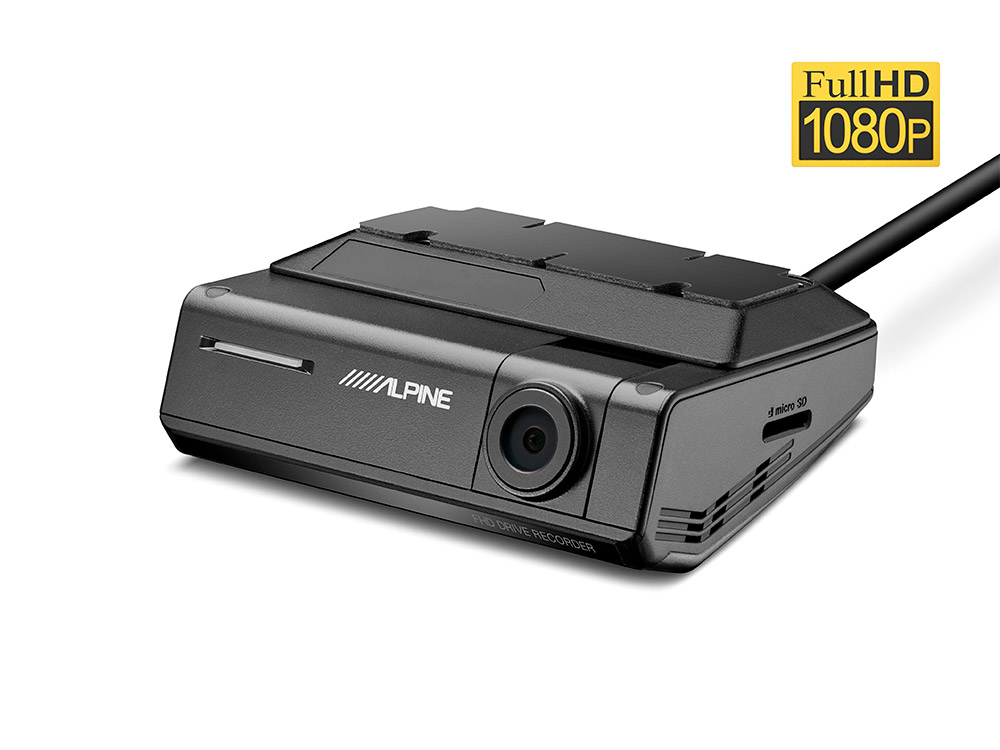

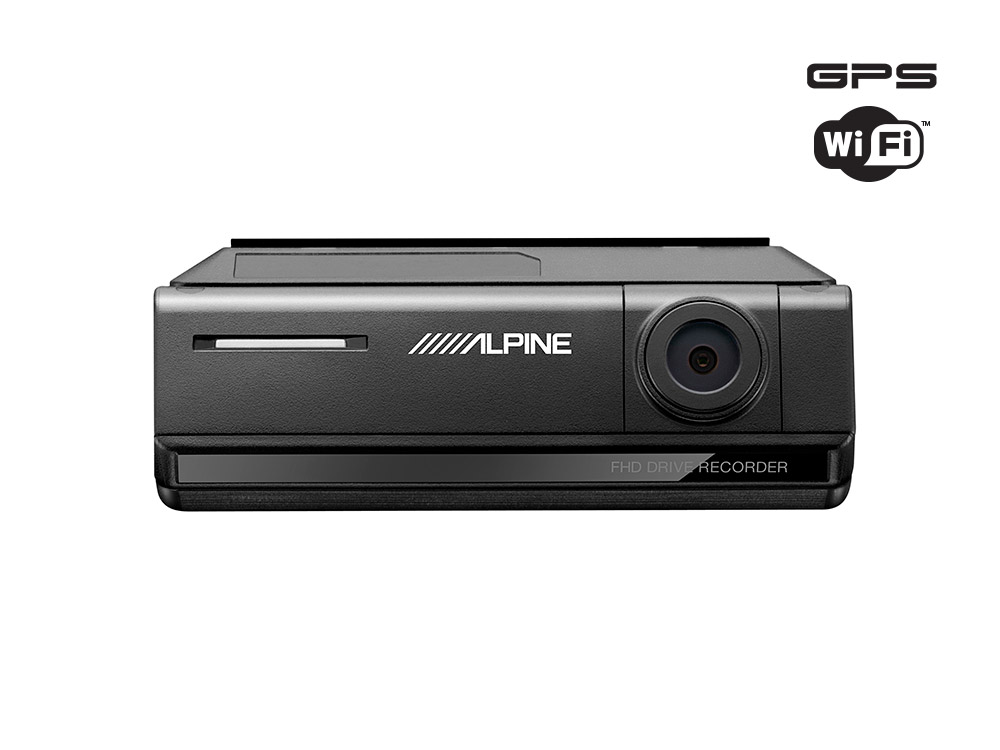

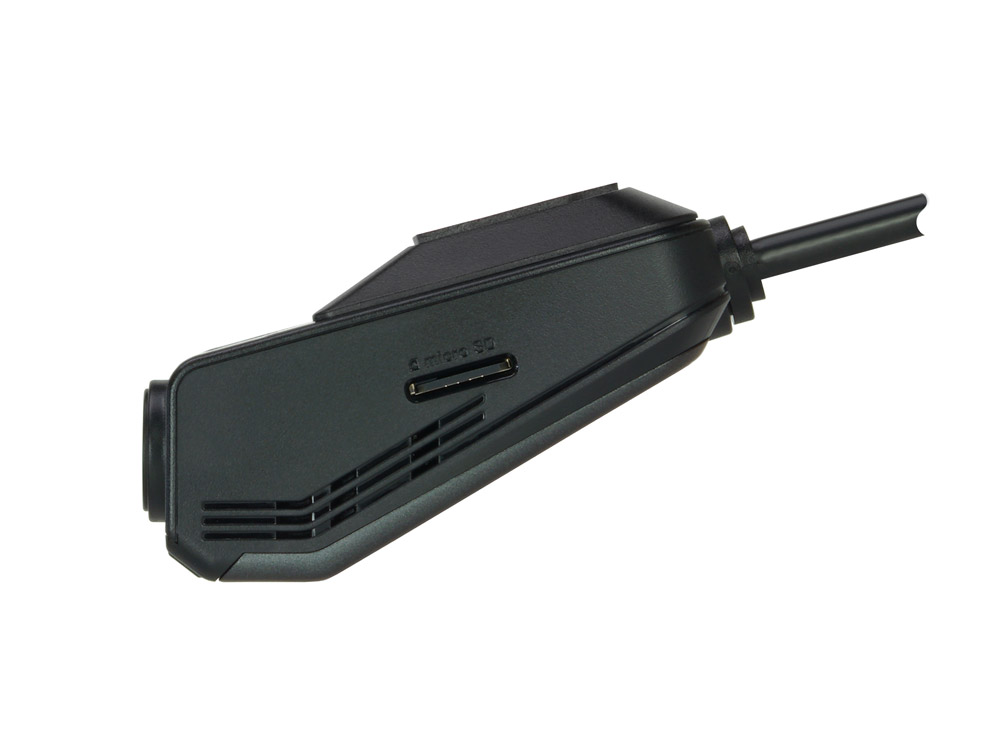

DVR-C320S
kr.42,900
Advanced Dash Cam with Driver Assistance (ADAS)

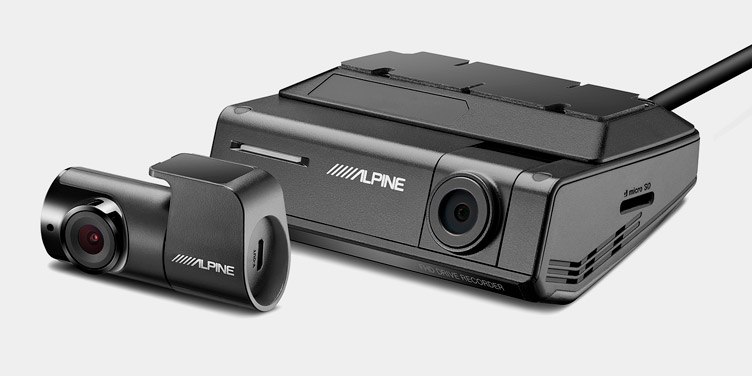

A dash cam is an on-board camera that continuously records the view through the vehicle’s front windshield. The recorded footage can be used as digital evidence in the event of a road accident, break-in or vandalism. When parked, dash cams can capture video and picture evidence if vandalism is detected.

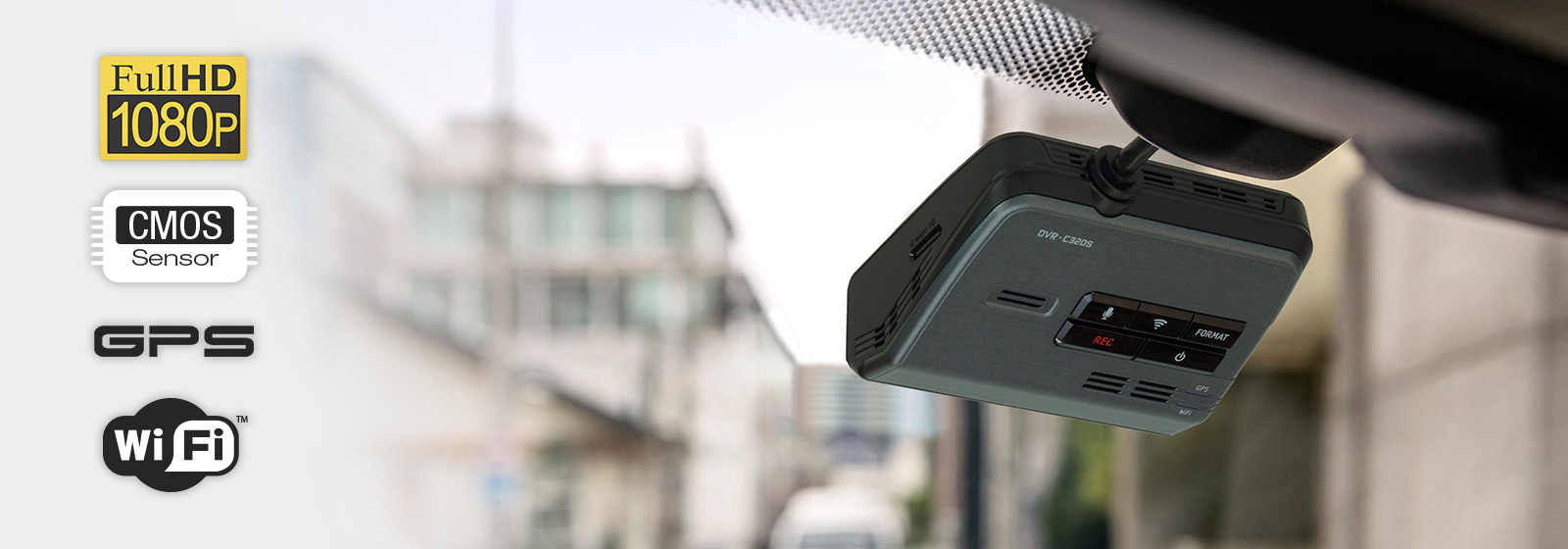

The DVR-C320S records in 1080p Full-HD for excellent picture quality and includes driver assistance functions, such as lane departure warnings, rear proximity alert and others, as well as GPS and WiFi capabilities. You can connect the camera to compatible Alpine head units to display recorded footage and even a live-view on the touch screen. There is also an optional rear accessory camera available. You can use the convenient companion app to make adjustments and view recordings on the go.

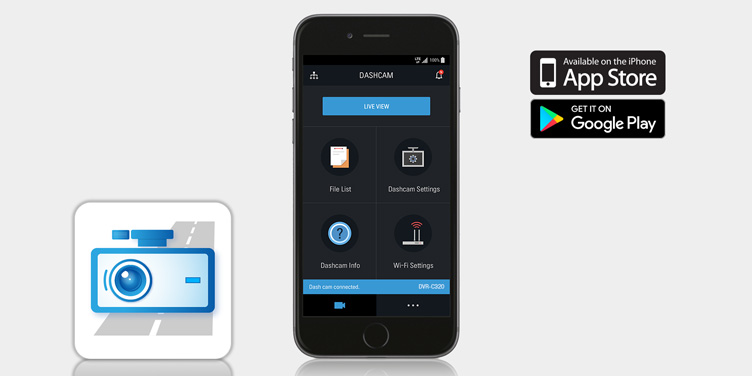

Download the Alpine Dash Cam Viewer for PC or MAC from the support section below to view your recordings on your computer at home.
Camera
- 2 Megapixel, ON Semiconductor CMOS
- Resolution: Full HD (1920 x 1080P @ 29fps / H.264 / MP4
Angle of view (Lens)
- Large angle: 144°
- Horizontal: 112°
- Vertical: 59°
Capacity

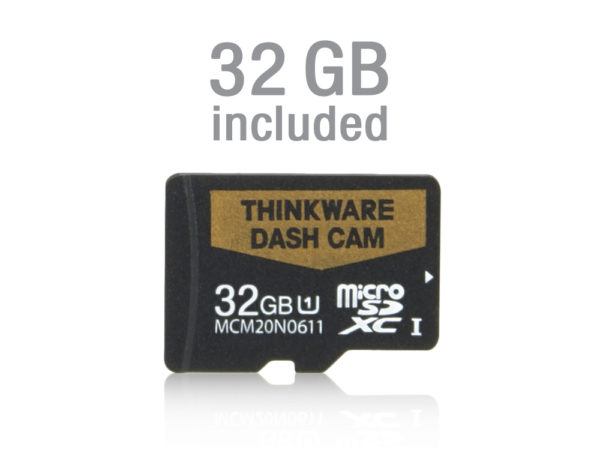

- Micro SD Card 32GB included

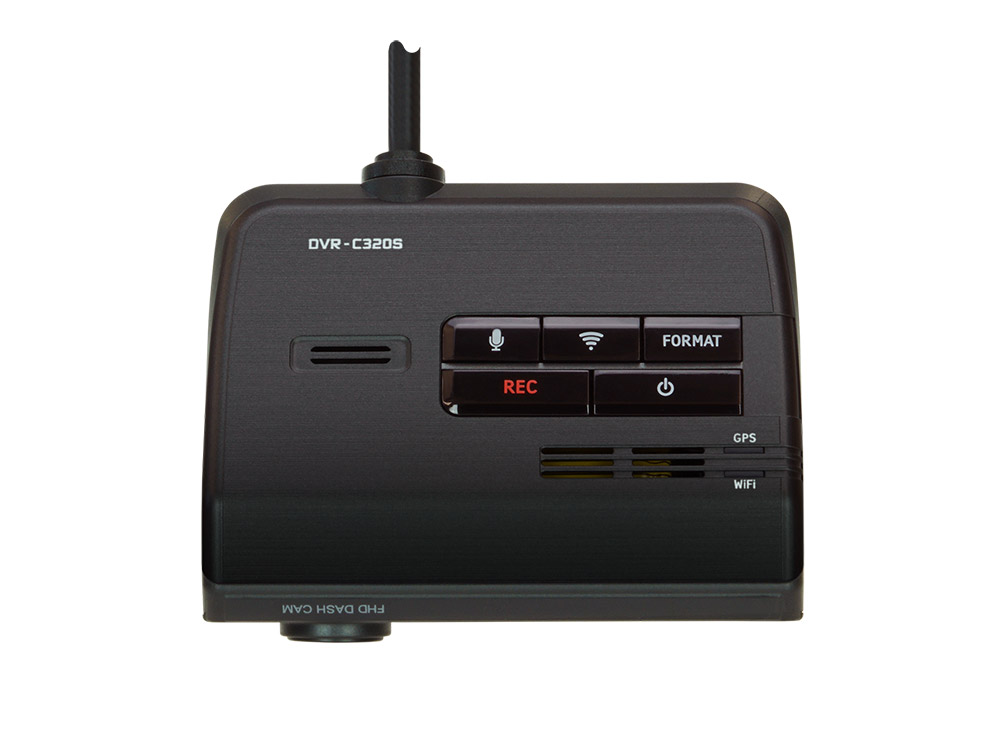

Recording Modes
- Continuous Recording
- Incident Recording
- Manual Recording
- Parking Recording (parking mode)
- Audio Recording

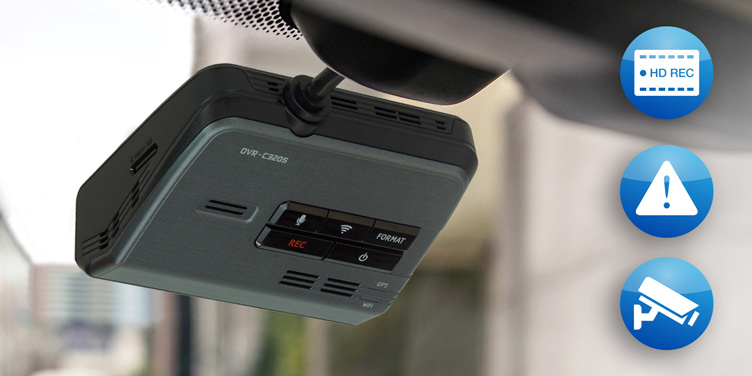

Driver Warnings and Alerts
- Lane Departure Warning System
- Rear Proximity Alert
- Forward Collision Warning System
- Front Vehicle Departure Alert
- Speed Camera / Red-light Camera Warning
General

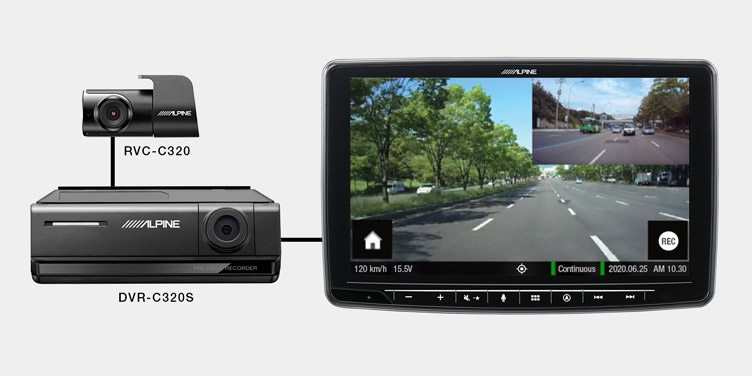

- Alpine Multimedia Receiver Control for compatible Alpine head units
- 3-Axis Accelerometer G-Sensor (3D, ±3G)
- External GPS
- Built-in Wi-Fi
- Built-in Speaker
- Input Power: DC 12
- Connection Interface: 1 x V-IN port
2x Alpine Heyrnatól með mótakara
SHS-N252
2 stk heyrnatól
Mótakari fylgir
2 AUX inngangar
Hægt að velja um rás 1/2
High Dynamic Range (HDR) Side View Camera with RCA and Direct Camera Connection
The HCE-CS1100 is a High Dynamic Range Side View camera for Alpine devices with direct camera input or RCA connection. It includes a universal mirror mount and a long connection cable.
Thanks to HDR technology, the picture quality is much better compared to regular camera systems – for easier manoeuvring and greater safety.
A side-view camera is a great addition to the more traditional front and rear camera systems. It can prevent scratched rimes during parking or for example be used as surveillance of the side of your motor-home.
SPECIFICATIONS
Dimensions
- Camera: 23.6 x 23.6 x 26.5mm (excluding projection on the rear)
- Power Section: 38.0 x 25.0 x 15.0mm (excluding projection)
- Camera Cable Length: 0.75m
- Camera Extension Cable Length: 3.5m
- Power Unit (Reverse/ACC/Video/GND): 3m
General
- Power Requirement: DC 9V to DC 15.6V
- Power Consumption: 1.2W (12V)
- Operating Temperature (Power Section): -30°C – +70°C
- Weight Camera: 33g (camera only)
- Weight Power Section: 83g (including cord)
Camera
- Ground Type: Negative Ground Type
- Output Image: Composite Video NTSC
- Image Output Impedance: 75 Ohms (1Vp-p)
- Image Sensor: 1/3.7 inch CMOS image sensor, Aspect Ratio 4:3
- Effective Number of Pixels: 640 (H) x 480 (V), Approximately 300,000 pixels
- Lens Focal Length: f=2.8mm
- Lens Brightness: F=1:2.0
- Angle of Field: Horizontal = 82.7° , Vertical = 60.5°
- S/N Ratio: 40.5 dB or more
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C – +70°C
- Illumination Range: Approximatly 1.5Lx to 100kLx
Rear View Camera (RCA)
• Distance guides
• High-res camera
• Ultra-wide angle camera
The KTA-450 is a very compact 4/2-Channel amplifier, that is mainly designed to be power-stacked with the iLX-W650BT, but can also be used stand-alone in any universal configuration.
Featuring Alpine’s Dynamic Peak Power (DPP) technology, the KTA-450 can add bursts of 100 Watts RMS power when needed.
In combination with the iLX-W650BT, the KTA-450 won the 2019 Innovations Award at CES Show 2019. If you plan to buy an iLX-W650BT, this tiny amplifier will make a significant improvement to your system.
High Dynamic Range (HDR) Multi View Front Camera
This all-new front-view HDR camera system provides parking safety with cutting-edge camera technology and full touch-screen operation.
Thanks to HDR technology, the picture quality is much better compared to regular camera systems – for easier maneuvering and greater safety.
A wide viewing range provides better visibility when coming out of ‘blind’ alleys or around obstructed corners. Especially useful for reducing blind spots with SUVs, minivans or trucks.
There is a choice of three viewing modes.
SPECIFICATIONS
Dimensions
- Camera: 23.6 x 23.6 x 26.1mm (excluding projection on the rear)
- Camera Cable Length: 1m
- Camera Extension Cable Length: 3m
General
- Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
- Ground Type: Negative Ground
- Max. Power Consumption: 1.2W (6.0V)
Camera
- Output Image: Normal image, CVBS (NTSC Video signal), for 16:9 wide-screen
- Image Output Impedance: 75 Ohms (1Vp-p)
- Image Sensor: 1/4″ Type Color CMOS Image Sensor, Aspect Ratio 16:9
- Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately 1.2 Mega pixels
- Lens: Focal Length: f=1.27mm
- Lens: Brightness: F=1:1.8
- Angle of Field: Horizontal = 180° , Vertical = 70°
- S/N Ratio: 41 dB or more
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C – +70°C
- Illumination Range: Approximatly 1.5Lx to 100kLx
- Weight: 41g (including cable but not including bracket and screw)
The iLX-705D is the successor of the highly popular, award winning iLX-702D Digital Media Station. This new generation includes many improvements, such as much higher screen resolution, wireless Apple CarPlay, 2 USB ports, as well as a built-in Class-D amplifier and Hi-Res Audio capabilities.
If you look for a high-performance 2DIN system for your car that includes all the latest features, cutting-edge media compatibilities and killer sound quality, the iLX-705D is for you.
Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.
Bring exceptionally good sound quality into your vehicle: the Alpine iLX-705D is among the world’s first Head Units featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as digital X-overs, a Parametric EQ, digital time correction and much more.
• Viewing Angle: Rear = Horizontal 131°, Vertical 103°
• Viewing Mode: 1 = Rear View
• Works with products featuring Direct Camera Input
• Automatic Imaging Function: Exposure and white balance adjustment
• Mirror Image (NTSC)
• Camera Dimensions: W23,6mm x H23,6mm x D24,0mm
• Non-blackbox Design
• Includes 10,5 meter Cable
The ESCORT MAX 3 levels up your driving game as the next evolution in connected driver alert systems. Be prepared and more informed for anything on the road ahead with premium range and advanced filtering.
MAX 3 TECH SPECS
OPERATING BANDS
X-band 10.525 GHz ± 25 MHz
K-band 24.100 GHz ± 150 MHz
Ka-band 34.700 GHz ± 1300 MHz
Laser 904nm, 33 MHz Bandwidth
RADAR RECEIVER / DETECTOR TYPE
Superheterodyne, Synthesized Varactor-Tuned VCO
LASER DETECTION
Quantum Limited Video Receiver
SENSITIVITY CONTROL
Highway, Auto, Auto No X and Auto Lo K
DISPLAY TYPE
Graphic Multi-Color OLED
Bar Graph
5 Levels of Brightness with Full Dark Mode
MUTE, AUTOMUTE AND SMARTMUTE
POWER REQUIREMENT
12VDC, Negative Ground
SmartCord USB Included
BLUETOOTH SMART (BLE)
UNIT DIMENSIONS
1.25” H x 2.88” W x 5.13” D
The KTA-200M is a very compact mono amplifier, that is mainly designed to be power-stacked with the iLX-W650BT, but can also be used stand-alone in any universal configuration.
Featuring Alpine’s Dynamic Peak Power (DPP) technology, the KTA-200M can produce 400 Watts of Alpine’s Exclusive Dynamic Peak Power for big subwoofer power in a small space.
High Dynamic Range (HDR) Rear View Camera with Direct Camera Connection
Thanks to HDR technology, the picture quality is much better compared to regular camera systems – for easier maneuvering and greater safety.
A rear view camera is a great way to improve your parking skills and make reversing safer. The camera image automatically comes on when you shift into reverse.
The cameras are very small, so they’re easy to install and don’t change the appearance of the car.
Works with Alpine products featuring Direct Camera Input.
SPECIFICATIONS
Dimensions
- Camera: 23.6x 23.6x 24.0mm (excluding projection on the rear)
- Camera Cable Length: 0.5m
- Camera Extension Cable Length: 10.5m
General
- Power Requirement: 6.0 V.DC
- Negative Ground
- Max. Power Consumption: 0.5W
- Weight Camera: 27g (including cable)
Camera
- Output Image: Mirror Image, Composite Video (NTSC Color Signal System)
- Image Output: 1 Vp-p (75 Ohms)
- Image Sensor: 1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3
- Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
- Lens Focal Length: f=1.34mm
- Lens Brightness: F=1:2.0
- Angle of Field: Horizontal = 131°, Vertical = 103°
- S/N Ratio: 40.5 dB or more
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C – +70°C
- Illumination Range: Approximately 1.5 to 100klx
1DIN Chassis – 9-inch Touch Screen, built-in Navigation, DAB+, HDMI and Apple CarPlay and Android Auto combatibility
The highly popular Alpine Halo9 is now also available with built-in navigation. This is especially interesting for motorhome and camper van drivers. The INE-F904D brings a 9-inch high-resolution touch-screen navigation system to any vehicle with 1DIN installation space.
The new “Alpine Halo9 Navi” features iGo Primo NextGen navigation with TomTom maps for 46 countries and 3 years free-of-charge map update. You can also use navigation apps (such as Google maps, Waze, etc) with Apple CarPlay and Android Auto.
The super-slim display appears to simply hover over your dashboard and even includes a white LED ambient light on the bottom.
Next to cutting edge navigation, you get DAB+ digital radio, USB video playback, Bluetooth hands-free and audio streaming and much more with this amazing product.
Bring the future of car-media to your ride with the Alpine Halo9 Navi.
This Model is also with pre-installed Caravan, Camper and Truck software available – please refer to our model INE-F904DC.
SPECIFICATIONS
Screen
- Screen Size: 9-inch Capacitive WVGA
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4 x 50 W
FM Tuner
- Tuning Range: 87.5 – 108.0 MHz
- Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
- 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Stereo Separation: 35 dB
- Capture Ratio: 2 dB
MW Tuner
- Tuning Range: 531 – 1,602 kHz
- Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
- Tuning Range: 153 – 281 kHz
- Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
USB
- USB Requirements: USB 2.0
- Max. Power Consumption: 1,500 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- FLAC Decoding
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1kHz): 0.008%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 100 dB
- Channel Separation (at 1kHz): 85 dB
GPS / Glonass
- GPS / Glonass compatible navigation antenna included
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V2.1+EDR
- Output Power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
Sound Tuning
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5Mode, Level 0 to +6
- HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- HighPassFilter (Gain): -12 to 0 dB
- LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- LowPassFilter (Gain): -12 to 0 dB
- Time Correction: 0.0 – 9.9ms (0.1ms step)
- Dual HD EQ Front + Rear
- Parametric Equalizer (Band 1): 20 – 100 Hz
- Parametric Equalizer (Band 2): 63 – 315 Hz
- Parametric Equalizer (Band 3): 125 – 500 Hz
- Parametric Equalizer (Band 4): 250 – 1k Hz
- Parametric Equalizer (Band 5): 500 – 2k Hz
- Parametric Equalizer (Band 6): 1k – 4k Hz
- Parametric Equalizer (Band 7): 2k – 7.2k Hz
- Parametric Equalizer (Band 8): 5.8k – 12k Hz
- Parametric Equalizer (Band 9): 9k – 20k Hz
- Parametric Equalizer (Gain): -14 to +14
- Application Volume Level Setting: -14 to +14
HDMI Section
- Input Format 480p / 720p
General
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 4 V / 10k ohms
- Maximum Mounting Angle: 30°
Dimensions
- Din Size: 1DIN chassis and 9” Capacitive Touch Screen
- Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
- Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm
10.2″ WVGA Overhead Monitor with HD USB Media Player
This high-resolution LCD 10.2″ Overhead Monitor gives you car theatre at its best. Rear seat passengers can listen via optional headphones, and can control playback functions via the unit or remote control. With 2 USB ports and an SD card slot, connect your Hard Drive, USB device or SD card for all your media entertainment. Plus, the Game port allows connection of a game console for even more entertainment.
